Micro Hardness Tester - Auto Software (900-390B)

Write a Review
100.00 LBS
$295.00 (Fixed Shipping Cost)
  • Certified Vickers Indenter for Phase 2 Microhardness Testers
  • Certified Knoop Indenter for Phase 2 Microhardness Testers
  • Base Cabinet for Rockwell, Brinell and Vickers Hardness Testers
Request Quote

Please add all desired items/options to the cart to request Quote for multiple items together at Cart page.

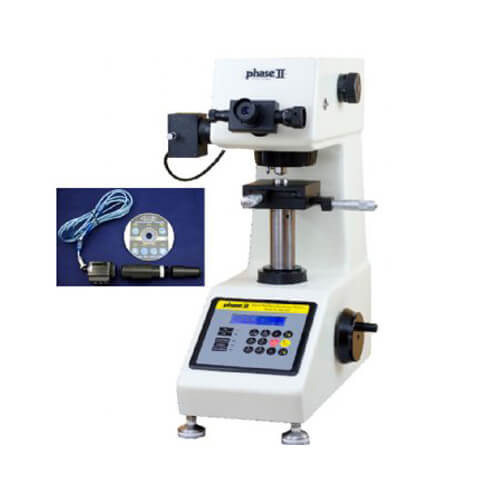

This Micro Vickers hardness tester from Phase II is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.

Technical Features:

  • Testing Range: 1 HV ~ 2967 HV
  • Test Load Range: 10 g - 1000 g
  • Max Specimen Height: 70 mm
  • Microscope Magnification: 100×,400×
  • Dwell Time: 5-60 s
  • XY Table Dimensions: 100 × 100 mm
  • Light source/Power Supply:110/220V,60/50Hz/Cold Light Source
  • Weight: 78 lbs (35 kg)
  • Package Dimensions:425×245×490mm
  • Auto-Measurement Software

Main Accessories for Phase II Vickers Hardness Tester Model 900-390:

  • Base Machine
  • X-Y Stage w/Micrometer
  • Mini Thin Part Holding Fixture
  • Mini Drill Chuck Fixture
  • Mini Vise fixture
  • Video Cam w/Adapter
  • Measurement Software
  • USB Cable

5 year warranty and free lifetime technical support.
